PCB & Substrate Testing

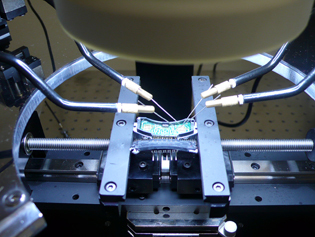

Probing printed circuit boards (PCBs), circuits on flexible plastic substrates (flex-circuits) and other unique devices requires a test platform that enables the user to securely mount the substrate and then reach the region of interest with the appropriate probe. The Probe System for Life ® (PS4L) adapts to specialized substrates by employing either a traditional platen mount or individual tower mounts for manipulators. These configurations enable the user to quickly and easily adjust the substrate and the probes to reach the test site whether it is horizontal, vertical or even from both sides. Board and substrate configurations facilitate probing from DC to HF/Microwave frequencies.
